Weld Neck Flanges Manufacturer
Introduction
Welcome to Shree Vinayak Metals & Tube, a leading Manufacturer, Exporter, and Supplier of high-quality steel products based in Mumbai, Maharashtra. Since our establishment in 2010, we have been committed to providing exceptional products and services to our valued customers worldwide. At Shree Vinayak Metals & Tube, our mission is to deliver top-notch steel products that cater to diverse industries and applications. We strive to maintain the highest standards of quality, reliability, and customer satisfaction in all aspects of our business.
In the intricate realm of industrial piping—where safety, efficiency, and reliability are of utmost importance the selection of components is vital. Weld neck flanges are a key component for applications involving high pressure, high temperature, and significant corrosion, among the many fittings that are available. Due to their distinctive design and sturdy build, they are the favored option for guaranteeing leak-proof connections and structural soundness in challenging settings.But what are weld neck flanges precisely, and what makes them so valued? Let’s look into the details and examine the importance of collaborating with a trustworthy Weld Neck Flanges Manufacturer such as Shree Vinayak Metals & Tube for your project’s success. We are the best Weld Neck Flanges Supplier.

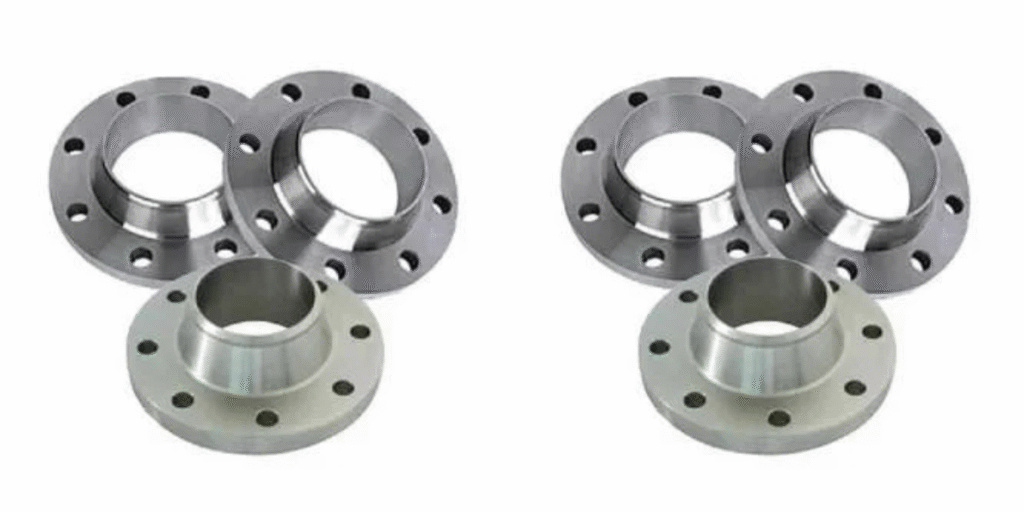

Understanding the Weld Neck Flanges
The long, tapered hub of a weld neck flange, which gradually transitions to the thickness of the pipe wall, makes it easy to identify. The unique design serves an important function: it enables a butt-weld connection to the pipe. A weld neck flange is directly welded to the pipe using a full penetration weld, unlike slip-on or threaded flanges, which slide over the pipe and are then fillet-welded.
The exceptional performance is primarily due to this butt-weld connection. It reduces the concentration of stress at the joint between the flange and pipe, spreading the stress uniformly across the tapered hub. This design trait greatly diminishes the likelihood of fatigue failure, particularly in applications exposed to thermal cycling, vibration, or variable pressures. We are the best Weld Neck Flanges Exporter.
Why Choose Shree Vinayak Metals & Tube
- Uncompromising Quality and Precision: At Shree Vinayak Metals & Tube, quality is the foundation of everything we do, not just a buzzword. Every weld neck flange we manufacture complies with or surpasses industry standards for dimensional accuracy, material composition, and mechanical properties, as we conform to the strictest international guidelines, including ASME B16.5 and B16.47. We exercise meticulous control over our manufacturing processes, from the inspection of raw materials to final testing, in order to ensure superior performance and longevity.
- Cutting-Edge Production Facilities: Our production facility features sophisticated machinery and technology, enabling us to carry out accurate forging, machining, and finishing operations. Our ability to manufacture weld neck flanges of outstanding quality and precision is made possible by our advanced technology and our talented workforce.
- Thorough Testing and Certifications: Each flange that departs our facility is subjected to a battery of rigorous evaluations, which encompass non-destructive testing (NDT) techniques such as ultrasonic testing, radiography, and dye penetrant inspection, as well as detailed assessments of its dimensions and mechanical properties. Our adherence to quality is evidenced by our certifications, which demonstrate our alignment with international quality management systems.
- Customer-Centric Approach and Timely Delivery: Our clients are our top priority at Shree Vinayak Metals & Tube. We collaborate closely with you to grasp your unique project needs, providing expert guidance and tailored solutions. We guarantee punctual delivery through our effective manufacturing methods and strong supply chain oversight. This reduces the likelihood of project holdups and enhances our clients’ operational continuity. Our client testimonials reflect our pride in the high user satisfaction ratings we have achieved, especially regarding quality and delivery.
- Experience and Reliability: Shree Vinayak Metals & Tube has established a reputation for reliability and excellence over the years in the industry. Industries across the globe rely on our flanges for critical applications, highlighting our unwavering quality and dedication to engineering excellence.
Applications of Weld Neck Flanges
- Oil and Gas Sector: Weld neck flanges are essential for linking high-pressure lines that carry crude oil, natural gas, and refined petroleum products, from offshore drilling platforms to refineries and pipelines.
- Petrochemical and Chemical Plants: These plants frequently work with corrosive materials, extreme heat, and elevated pressures. For processing and managing a wide variety of chemicals, weld neck flanges offer secure, leak-free connections.
- Power Generation: Weld neck flanges are employed in steam lines, condensers, turbines, and other essential elements of thermal, nuclear, and renewable energy facilities where high temperatures and pressures are commonplace.
- Chemical Processing: Our Weld Neck Flanges are indispensable for industries that work with acids, alkalis, and other caustic substances. They provide exceptional corrosion resistance and a leak-proof seal for reactors, storage containers, and piping systems.
- Water Treatment and Desalination: Water treatment and desalination facilities at a large scale work with significant quantities of water and frequently handle corrosive substances. Our Weld Neck Flanges, especially those crafted from duplex and stainless steels, provide the necessary durability and resistance for these challenging settings.
- Shipbuilding: Marine applications necessitate components capable of enduring the severe conditions of the open sea, such as saltwater corrosion and dynamic forces. Our Weld Neck Flanges are employed in ship piping systems for fuel, ballast, and cooling purposes, guaranteeing dependable operation.
- Fertilizer Industry: Various chemical processes, often at high temperatures and pressures, are involved in the production of fertilizers. Our flanges are essential for preserving the integrity of pipelines that transport raw materials, intermediate products, and final fertilizers.
Specification Table of Weld Neck Flanges
| Parameter | Details |
|---|---|
| Product Name | Weld Neck Flanges |
| Brand | Shree Vinayak Metals & Tube |
| Material Grades | Stainless Steel, Carbon Steel, Alloy Steel |
| Standard | ASTM, ASME, ANSI, DIN, BS |
| Size Range | ½” to 60” (DN15 to DN1500) |
| Pressure Ratings | Class 150, 300, 600, 900, 1500, 2500 |
| Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) |
| Connection Type | Butt Weld |
| Face Type | RF, FF, RTJ |
| Application | Oil & Gas, Petrochemical, Power, Shipbuilding, Water Treatment |
| Finish | Black Paint, Anti-Rust Coated, Polished |
| Customization | Available as per client drawings and specifications |
Advantages of Weld Neck Flanges
- Remarkable Strength and Integrity: The Weld Neck Flange is designed with a long, tapered hub that gradually connects to the pipe wall, unlike other flange types that depend on slip-on or lap joint designs. This enables a robust and seamless butt weld to be made directly onto the pipe. With its integral design, this connection minimizes stress concentration and provides an extremely robust, leak-proof joint that can endure immense pressures and temperature fluctuations without deforming. This is especially crucial in applications where even the smallest leak could lead to disastrous outcomes.
- Less Turbulence and Erosion: The Weld Neck Flange features a smooth, tapered bore that aligns with the pipe’s inside diameter, resulting in an unimpeded flow path. This reduces turbulence in the pipeline, which lowers pressure drop and avoids erosion of the internal components and pipe walls. This characteristic results in a longer operational life and lower maintenance expenses for large-scale applications involving fluids with high velocity or abrasive slurries.
- Perfect for Severe Service Conditions: Whether dealing with volatile petrochemicals or superheated steam, Weld Neck Flanges are designed to excel in the toughest environments. Their intrinsic robustness and capability to undergo full radiographic examination (X-ray) post-welding guarantee total integrity, rendering them the preferred option for essential uses in which safety and dependability are of utmost importance.
- Enables Non-Destructive Testing (NDT): Thanks to its design, the Weld Neck Flange permits comprehensive non-destructive examination of the weld joint. This encompasses radiography, ultrasonic testing, and magnetic particle inspection each essential for confirming the weld’s integrity and adherence to rigorous industry standards.
- Competitive Pricing and Cost-Effective Solutions: While we are dedicated to maintaining the highest quality standards, we aim to provide prices and solutions that lead the industry, guaranteeing superb value for your investment.
- Worldwide Presence: Our strong distribution network enables us to cater to clients throughout India and export our premium products to global markets such as Kuwait, the USA, Qatar, and Egypt.
Types of Weld Neck Flanges
Standard Weld Neck Flanges
- These are regular weld neck flanges used in most piping applications, offering a smooth connection between the flange and pipe. They’re available in various pressure classes like 150, 300, 600, 900, 1500, and 2500.
Long Weld Neck Flanges
- Long Weld Neck Flanges (LWN) are designed with an extended neck for applications involving elevated pressure and temperature. They’re commonly used in heat exchangers and vessel connections.
Reducing Weld Neck Flanges
- These are specially designed to connect pipes of different diameters while maintaining the benefits of a weld neck design. They’re ideal for space-constrained or specialized installations.
Heavy Hub Weld Neck Flanges
- These flanges feature a thicker hub section, providing additional strength and rigidity. Suitable for high-stress and high-temperature applications.
Custom Weld Neck Flanges
- Manufactured based on client-specific requirements regarding size, material, and pressure ratings for specialized industrial applications.
Conclusion
Weld neck flanges serve more purposes than merely being pipe fittings; as key elements that protect industrial activities, they guarantee the safe and effective transfer of essential resources. Due to their exceptional strength, leak-proof construction, and capacity to endure severe conditions, they are a vital option for rigorous applications in multiple industries. We are the best Best Weld Neck Flanges Manufacturer.
Choosing a dependable and seasoned manufacturer for weld neck flanges is of utmost importance. Shree Vinayak Metals & Tube serves as a symbol of quality, precision, and dedication to customers. Our commitment lies in offering weld neck flanges that go beyond industry standards, ensuring your projects benefit from steadfast reliability and performance. Select Shree Vinayak Metals & Tube for connections that are genuine and enduring.
